Firefly Series-COB | LPDISPLAY

ProductsFirefly Series-COB

Firefly Series

The firefly series LED display is a large size full flip chip cob display for monitoring application market.

Pixel Pitch:

0.93mm/1.25mm/1.56mm/1.875mm

Brightness:

600nits

Cabinet size:

600x337.5x40mm/1,200x675x40mm

Die casting
aluminum cabinet

SMD/COB
optional

Common cathode
energy saving

Fully front
maintenance

High protection

Multi-size Splicing

Flexible splicing of large and small size cabinet, maximize meet the installation size requirement.

Redundancy Design

Dual receiving card and power supply options provide four times safety, video wall never black out.

COB Package with High Protection is Available

Special treatment with G0B technology, enabling surface water-resistant, dust-resistant, impact-resistant and anti-static.

Large Size Cabinet Design

Large-sized cabinet, offering quick installation and seamless splicing for large-area display, saving time and effort.

APPLICATION SCENARIOS

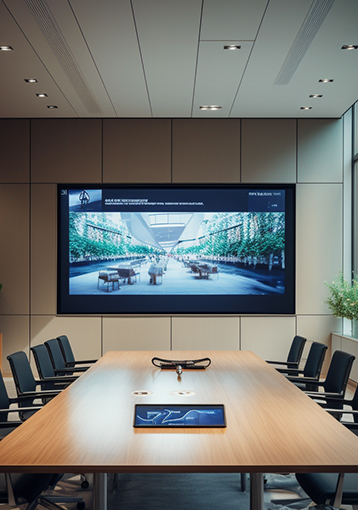

Conference

Monitoring center

Command center

Data center

Specs

Download product brochure

Watch Product Video

Model	63V09	63V12	63V15	63V18
Pixel Configuration	Flip Chip COB	Flip Chip COB	Flip Chip COB	Flip Chip COB
Pixel Pitch(mm)	0.93	1.25	1.56	1.87
Cabinet Size(mm)(WxHxD)	600x337.5x40/1,200x675x40	600x337.5x40/1,200x675x40	600x337.5x40/1,200x675x40	600x337.5x40/1,200x675x40
Cabinet Resolution(WxH)	640X360/1,280X720	480X270/960X540	384X216/768X432	320X180/640X360
Cabinet Weight(kg/cabinet)	4.4/16.5	4.4/16.5	4.4/16.5	4.4/16.5
Refresh Rate(Hz)	3,840	3,840	3,840	3,840
Grayscale(bit)	14-16	14-16	14-16	14-16
Brightness(nits)	600	600	600	600
Viewing Angle（H/V）	170°/170°	170°/170°	170°/170°	170°/170°
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000

Model	63V09	63V12	63V15	63V18
Pixel Configuration	Flip Chip COB	Flip Chip COB	Flip Chip COB	Flip Chip COB
Pixel Pitch(mm)	0.93	1.25	1.56	1.87
Cabinet Size(mm)(WxHxD)	600x337.5x40/1,200x675x40	600x337.5x40/1,200x675x40	600x337.5x40/1,200x675x40	600x337.5x40/1,200x675x40
Cabinet Resolution(WxH)	640X360/1,280X720	480X270/960X540	384X216/768X432	320X180/640X360
Cabinet Weight(kg/cabinet)	4.4/16.5	4.4/16.5	4.4/16.5	4.4/16.5
Refresh Rate(Hz)	3,840	3,840	3,840	3,840
Grayscale(bit)	14-16	14-16	14-16	14-16
Brightness(nits)	600	600	600	600
Viewing Angle（H/V）	170°/170°	170°/170°	170°/170°	170°/170°
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000
