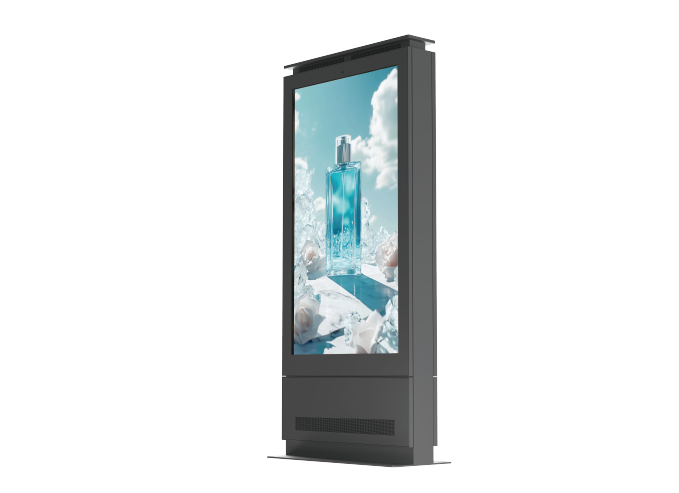

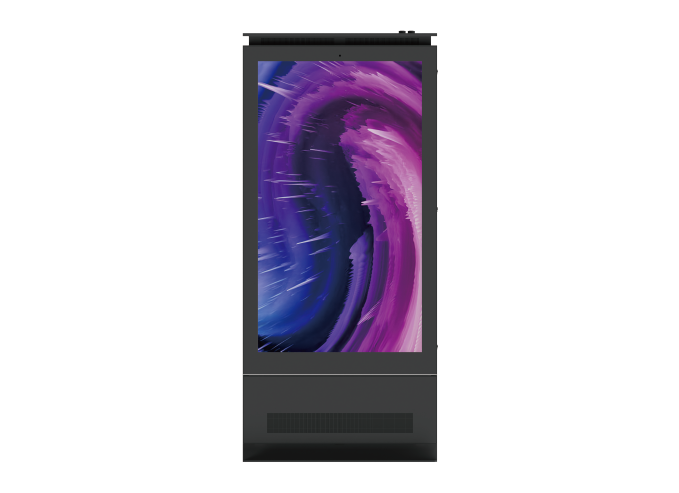

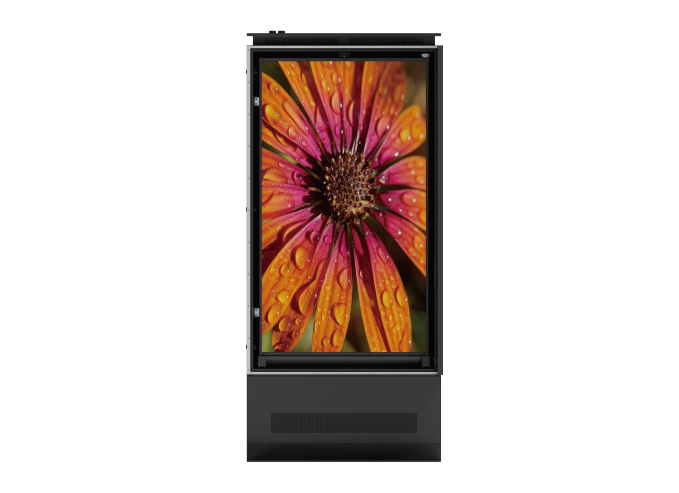

Obsidian Series is a full outdoor double-sided LED advertising display engineered for an excellent display effect and unparalleled performance in any outdoor environment.
Pixel pitch:
1.25mm/1.875mmBrightness:
3,500~4,000nitsOverall Dimension(mm):
1,280x550x2,830

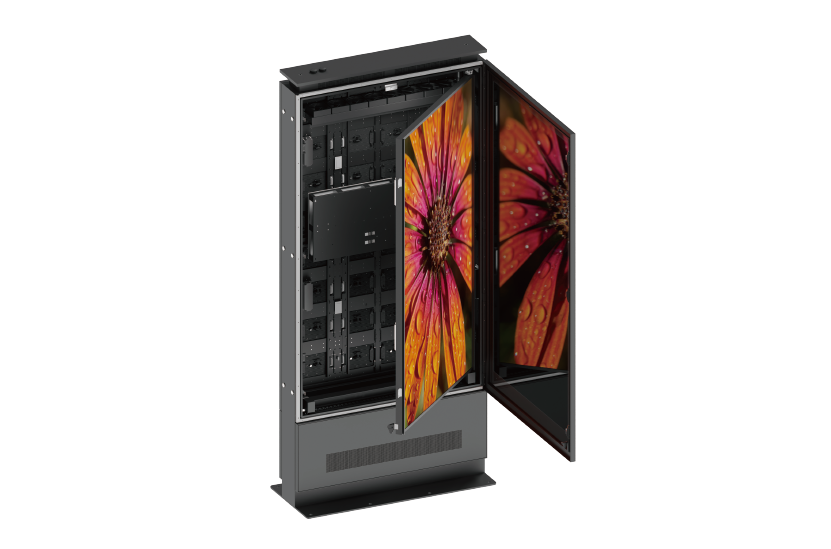

Glass doors can be opened from the front forinternal component maintenance.

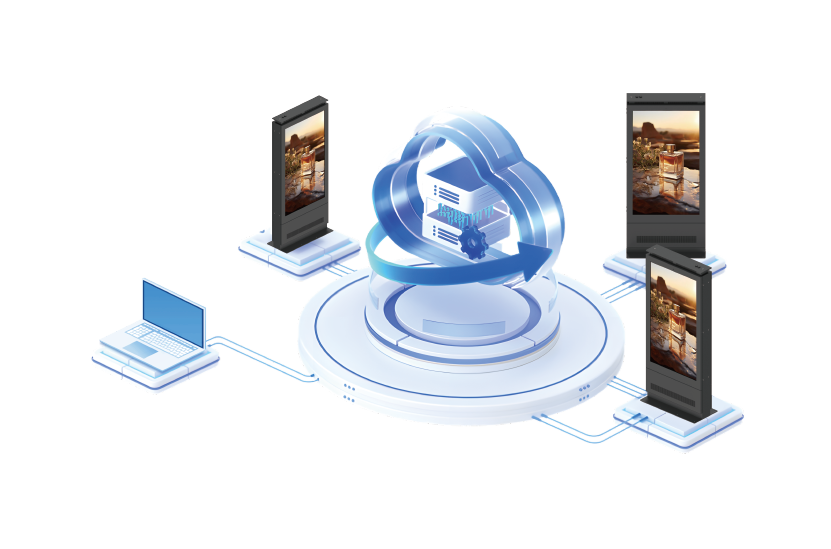

Through the cloud account, programscan be released anytime and anywhere,without geographical restrictions, simple and convenient.

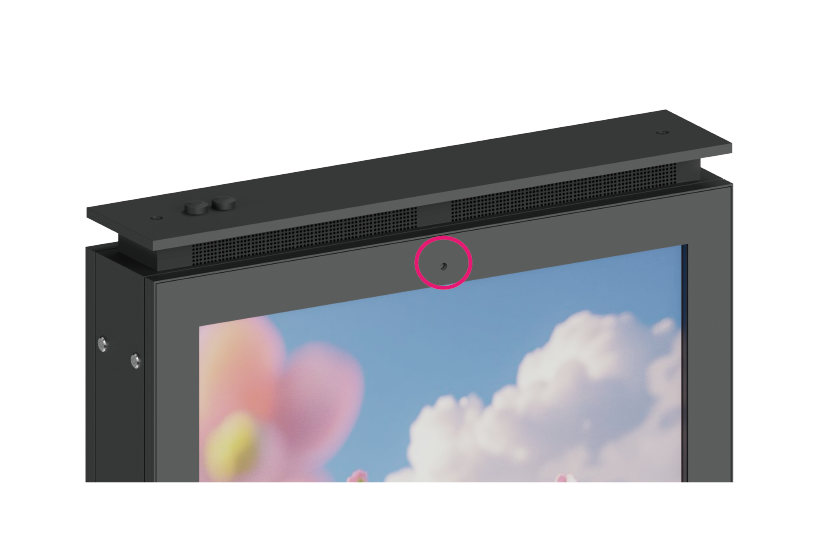

Equipped with light sensor, which can adjust the display brightnessin real time according to the external light intensity, save energy while avoiding glare, and provide a good visual experience.

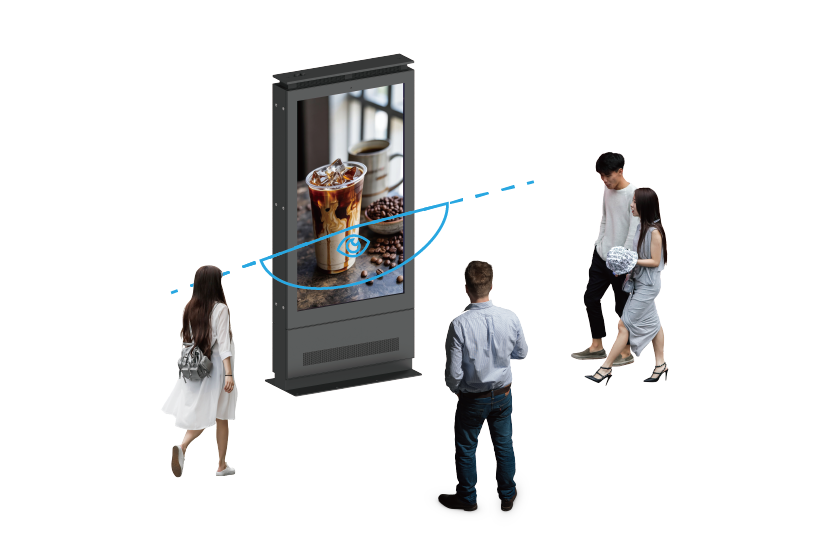

Viewing angle 170°/170°, advertising content can be easily accessed from all angles to improve the audience.
The mobile phone is connected to the wifi hotspot of the control box, and the program can be released.
| Model | Obsidian12 | Obsidian18 |
| Pixel Configuration | MIP | MIP |
| Pixel Pitch(mm) | 1.25 | 1.87 |
| Overall Dimensions(mm)（WxHxD） | 1,280x550x2,830 | 1,280x550x2,830 |
| Overall Resolution（WxH） | 864x1,536 | 574x1,024 |
| Overall Weight(kg) | 470 | 470 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 14~16 | 14~16 |
| Brightness(nits) | 3,500~4,000 | 3,500~4,000 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Maintenance Mode | Front access | Front access |
| Lifetime(H) | 100,000 | 100,000 |
| Model | Obsidian12 | Obsidian18 |
| Pixel Configuration | MIP | MIP |
| Pixel Pitch(mm) | 1.25 | 1.87 |
| Overall Dimensions(mm)（WxHxD） | 1,280x550x2,830 | 1,280x550x2,830 |
| Overall Resolution（WxH） | 864x1,536 | 574x1,024 |
| Overall Weight(kg) | 470 | 470 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 14~16 | 14~16 |
| Brightness(nits) | 3,500~4,000 | 3,500~4,000 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Maintenance Mode | Front access | Front access |
| Lifetime(H) | 100,000 | 100,000 |
