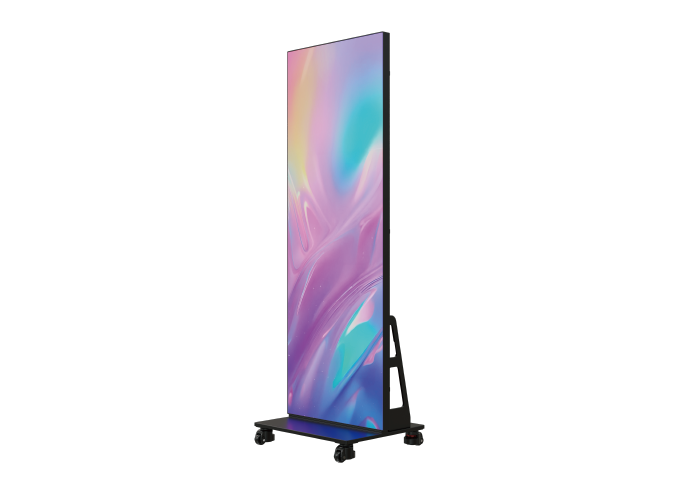

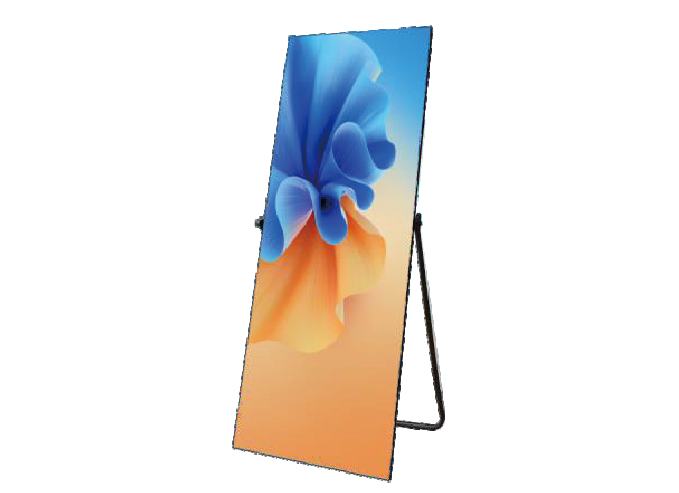

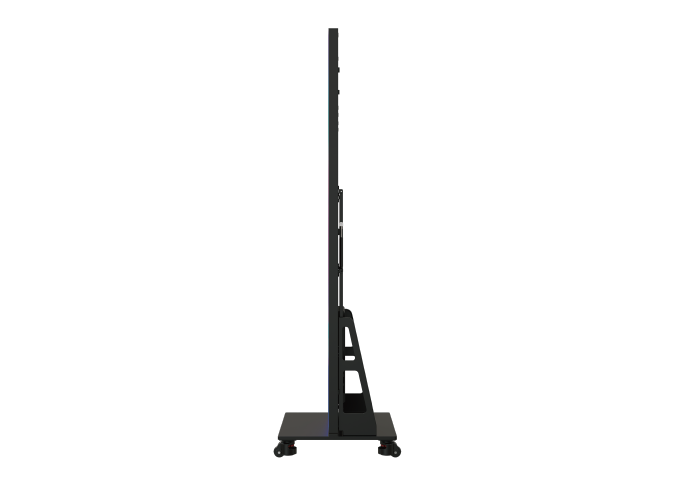

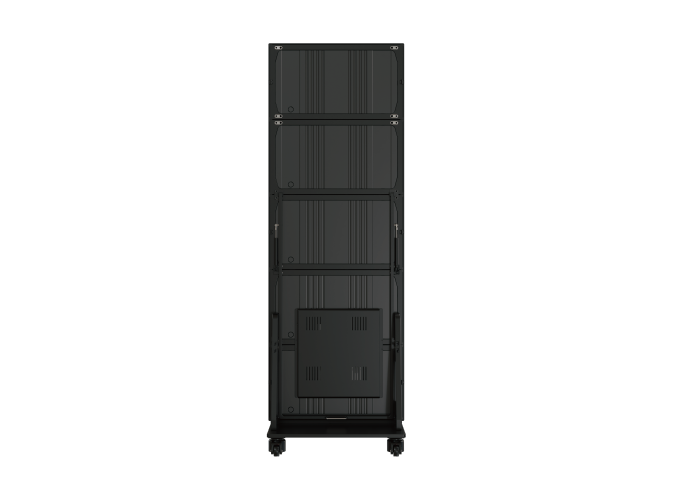

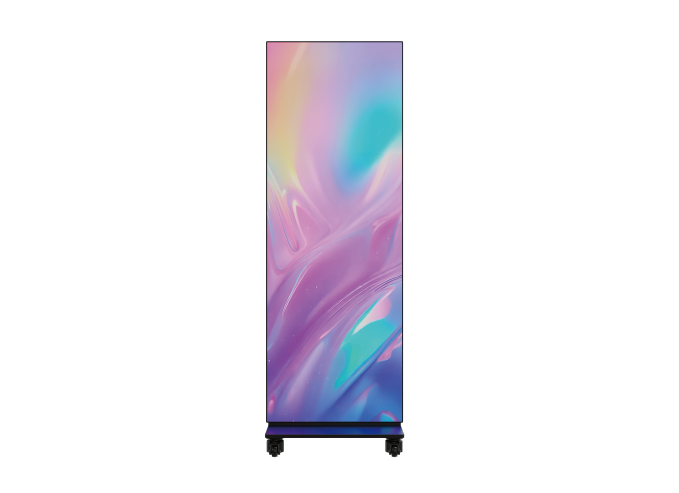

The V-Poster series LED display is an all-in-one smart LED display developed by LP DISPLAY for indoor HD poster display market.
Pixel pitch:
0.93mm/1.25mm/1.56mm/1.875mm/2.5mmBrightness:
600~800nitsExternal Dimension:
610mmx1,806mmx500mm

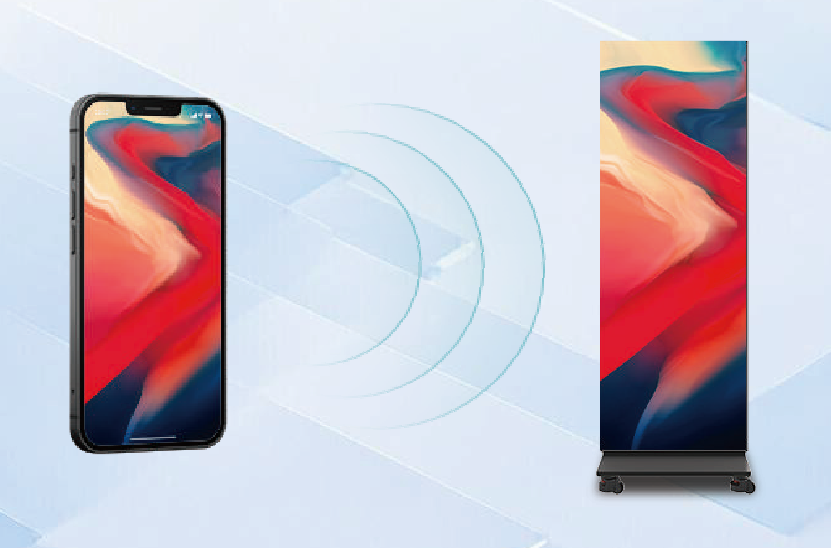

Easily control by 5G signal. LAN cable and USB Multiple connection options for confugration.

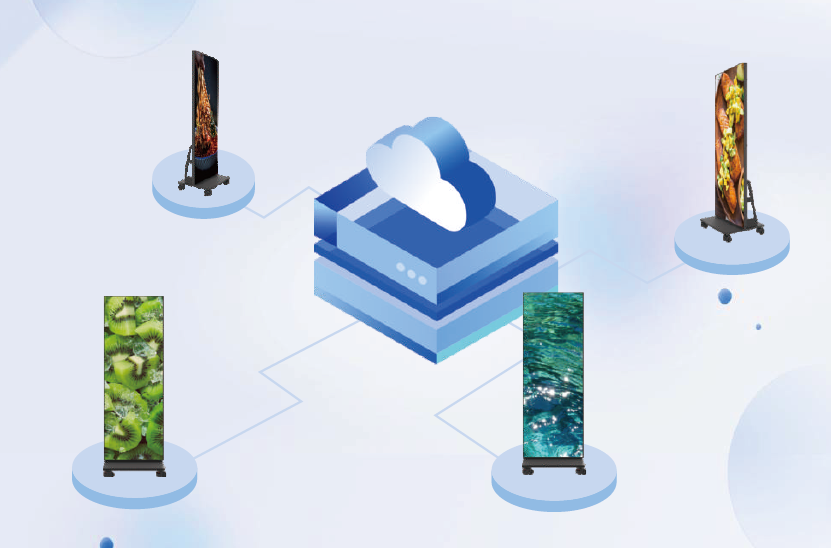

Release programs from the cloud, without geographical restrictions, anytime, anywhere.

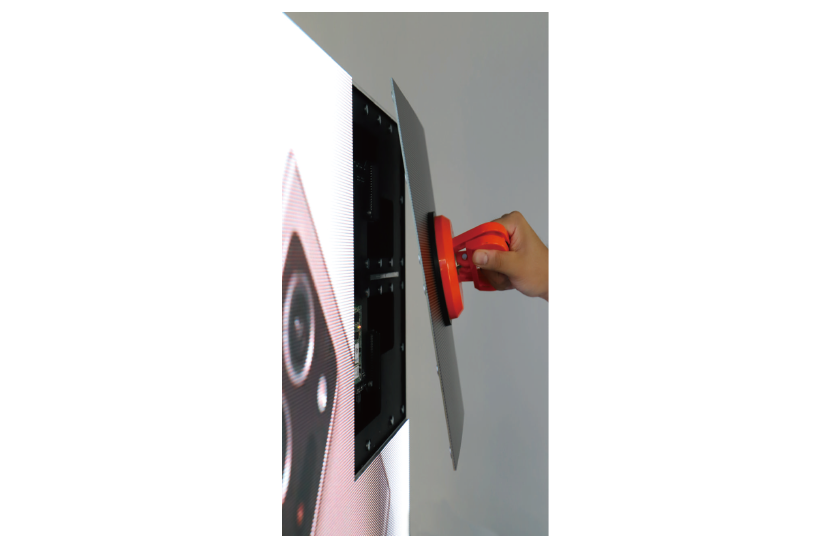

All component can be replaced from front sideConvenient and fast.
Through the GOB(SMD)or COB package process, module surface will be fully sealed with epoxy resin, which gives a fully protection for product against various external infuences.

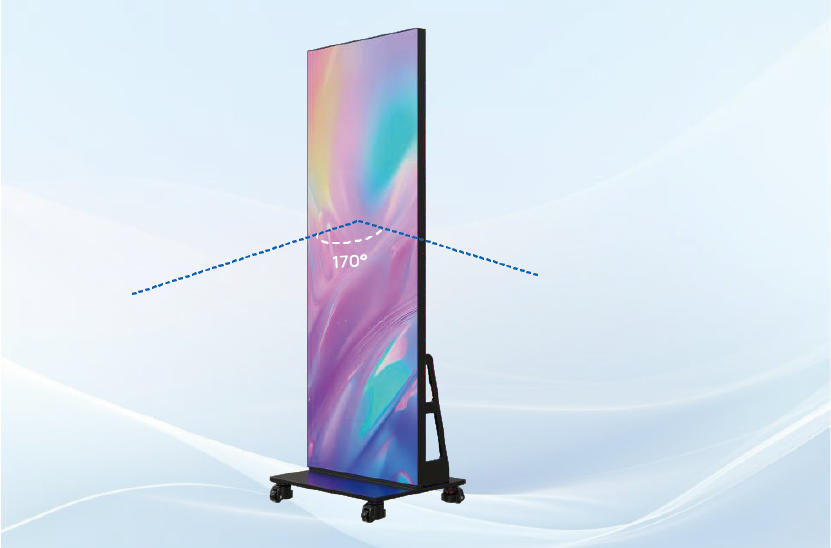

Flip chip COB makes wider view angle 170°/170°.
| Model | VPoster09 | VPoster12 | VPoster15 | VPoster18 | VPoster12 | VPoster15 | VPoster18 | VPoster25 |
| Pixel Configuration | COB | COB | COB | COB | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 0.9 | 1.25 | 1.56 | 1.875 | 1.25 | 1.56 | 1.875 | 2.5 |
| External Dimension(mm)（WxHxD） | 610x1,806x500 | 610x1,806x500 | 610x1,806x500 | 610x1,806x50 | 600x1,698x500 | 600x1,698x500 | 600x1,698x500 | 600x1,698x500 |
| Resolution（WxH） | 640X1,800 | 480x1,350 | 384x1,080 | 320x900 | 480x1,350 | 384x1,080 | 320x900 | 240x675 |
| Weight(kg) | 45 | 45 | 45 | 45 | 47 | 47 | 47 | 47 |
| Refresh Rate(Hz) | 3,840 | 3,840 | 3,840 | 3,840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Maintenance Mode | Front access | Front access | Front access | Front access | Front access | Front access | Front access | Front access |
| Communication Mode | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Model | VPoster09 | VPoster12 | VPoster15 | VPoster18 | VPoster12 | VPoster15 | VPoster18 | VPoster25 |
| Pixel Configuration | COB | COB | COB | COB | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 0.9 | 1.25 | 1.56 | 1.875 | 1.25 | 1.56 | 1.875 | 2.5 |
| External Dimension(mm)（WxHxD） | 610x1,806x500 | 610x1,806x500 | 610x1,806x500 | 610x1,806x50 | 600x1,698x500 | 600x1,698x500 | 600x1,698x500 | 600x1,698x500 |
| Resolution（WxH） | 640X1,800 | 480x1,350 | 384x1,080 | 320x900 | 480x1,350 | 384x1,080 | 320x900 | 240x675 |
| Weight(kg) | 45 | 45 | 45 | 45 | 47 | 47 | 47 | 47 |
| Refresh Rate(Hz) | 3,840 | 3,840 | 3,840 | 3,840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Maintenance Mode | Front access | Front access | Front access | Front access | Front access | Front access | Front access | Front access |
| Communication Mode | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
