The Gemini Series Indoor Ultra-thin Double-sided Fine-pitch LED Display is developed and manufactured with cutting-edge proprietary technologies by LPDISPLAY.
Pixel Pitch:
0.93mm/1.25mm/1.56mm/1.87mmBrightness:
800~1,000nitsCabinet size:

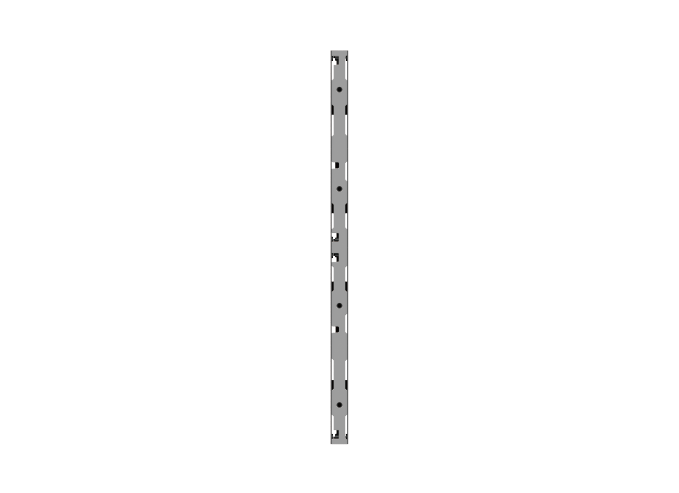

300x675x29.7mm
Flip chip mip technology, no welding pad block high luminous efficiency.
No welding wire, reduce the failure rate of the lamp bead.
Light-emitting chip direct contact with the pcb, which improves heat dissipation.
Product use common cathode design to reduces power consumption, less heat generation, lower screen temperature, improves sta bility and longevity.

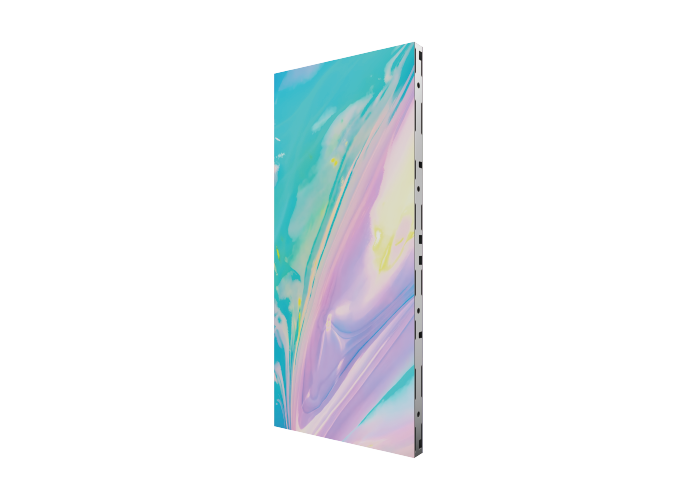

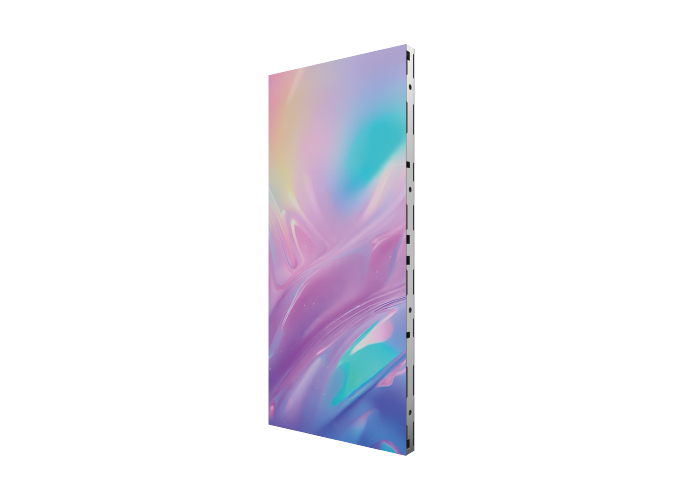

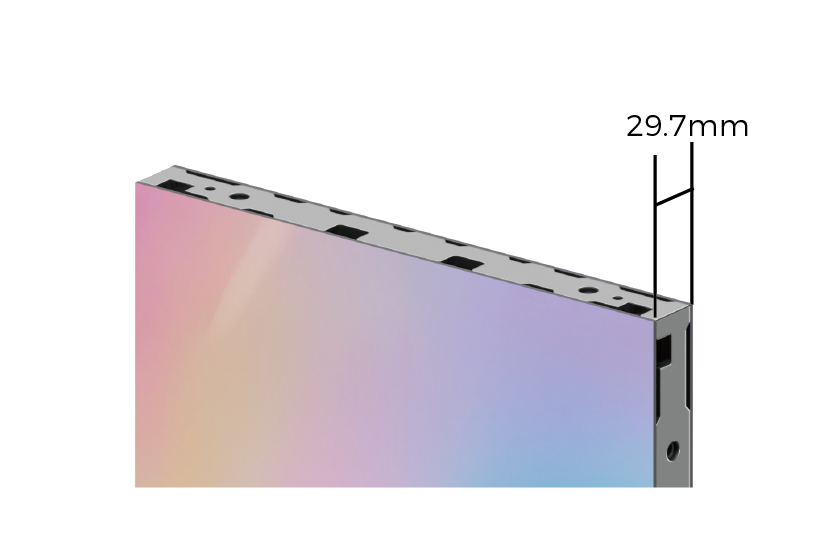

With a thickness of just 29.7mm, the Gemini Series Double-sided LED Display redefines ultra-slim design for double-sided LED screens.
15,000:1 ultra high contrast ratio at 1000nits brightness make the effect more vivid.

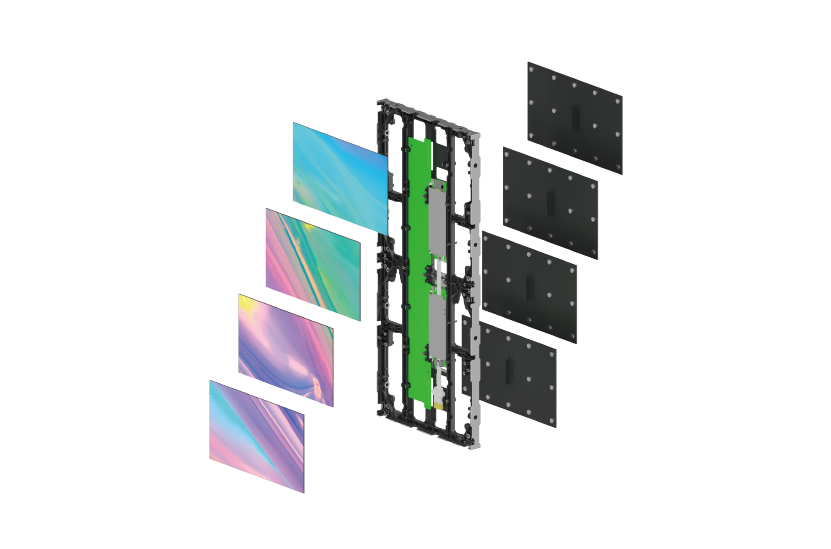

Module, power supply, receiving card are hard link.
Calibration under various brightness conditions to ensure good consistency whether it is high or low brightness.
| Model | 36B09 | 36B12 | 36B15 | 36B18 |
| Pixel Configuration | Flip Chip COB | Flip Chip COB | Flip Chip COB | Flip Chip COB |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.5625 | 1.875 |
| Cabinet Size(mm)(WxHxD) | 300x675x29.7 | 300x675x29.7 | 300x675x29.7 | 300x675x29.7 |
| Cabinet Resolution(WxH) | 320X720 | 240X540 | 192X432 | 160X360 |
| Cabinet Weight(kg/cabinet) | 4.3 | 4.3 | 4.3 | 4.3 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 |
| Model | 36B09 | 36B12 | 36B15 | 36B18 |
| Pixel Configuration | Flip Chip COB | Flip Chip COB | Flip Chip COB | Flip Chip COB |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.5625 | 1.875 |
| Cabinet Size(mm)(WxHxD) | 300x675x29.7 | 300x675x29.7 | 300x675x29.7 | 300x675x29.7 |
| Cabinet Resolution(WxH) | 320X720 | 240X540 | 192X432 | 160X360 |
| Cabinet Weight(kg/cabinet) | 4.3 | 4.3 | 4.3 | 4.3 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 |
