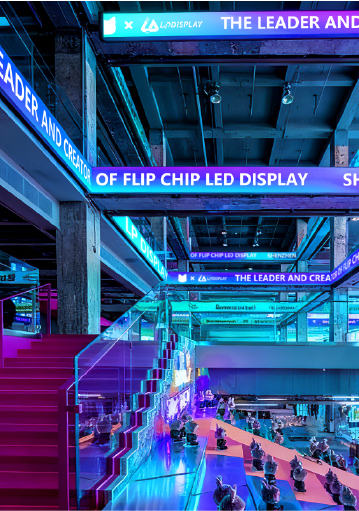

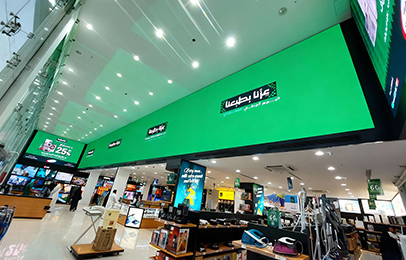

Inspire series is a custom-engineered fine-pitch LED display by LPDISPLAY, specifically designed for indoor commercial guardrail applications.
Pixel pitch:
1.25mm/1.56mm/1.93mm/2.6mm/2.9mm/3.9mmBrightness:
800~1,000nitsCabinet size:

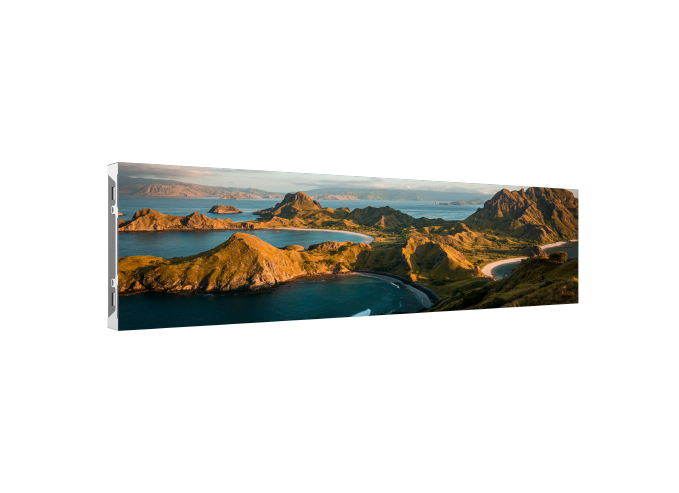

1,000x250mm

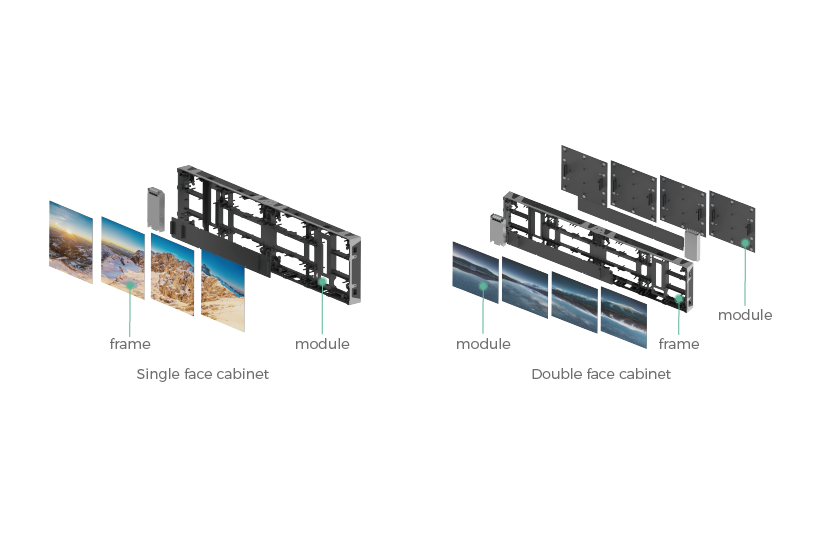

Double-sided or single-sided display can be selected according to requirements.
14-16 bit gray level make the imageexquisiteand soft, bright and vivid.

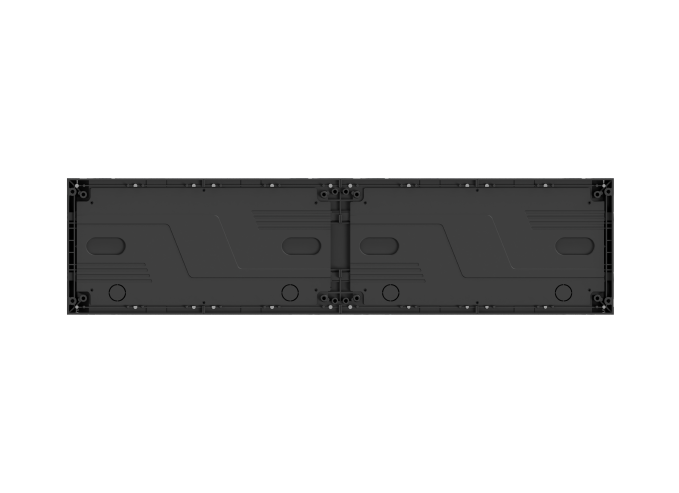

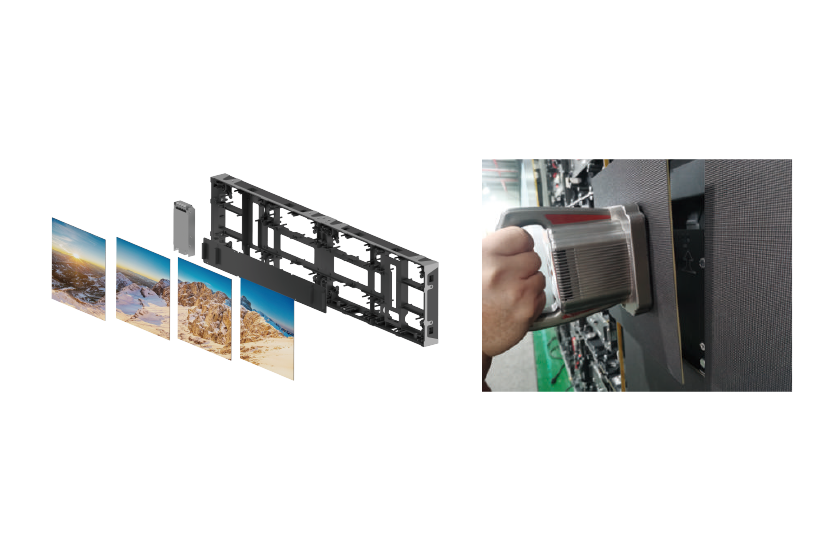

All components can be full front maintenance.

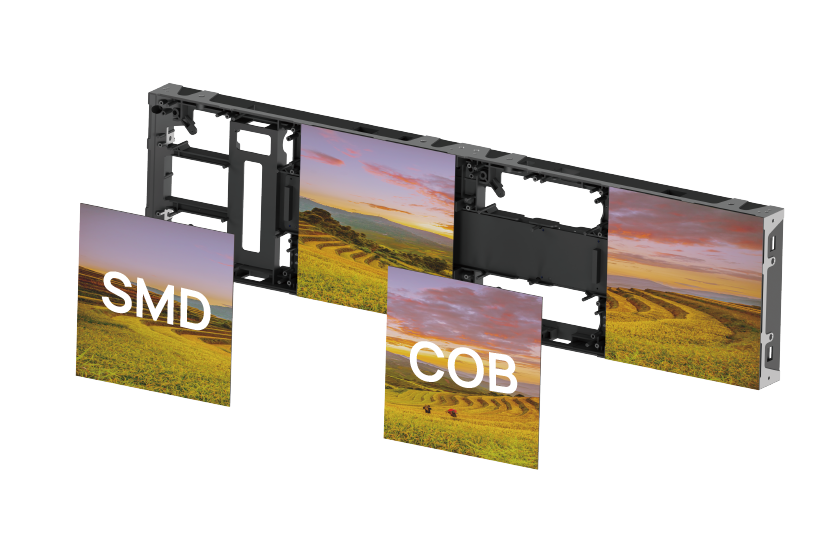

The product allows for direct replacement of COB and SMD modules without the need to change the cabinet, making it extremely convenient and cost-effective.

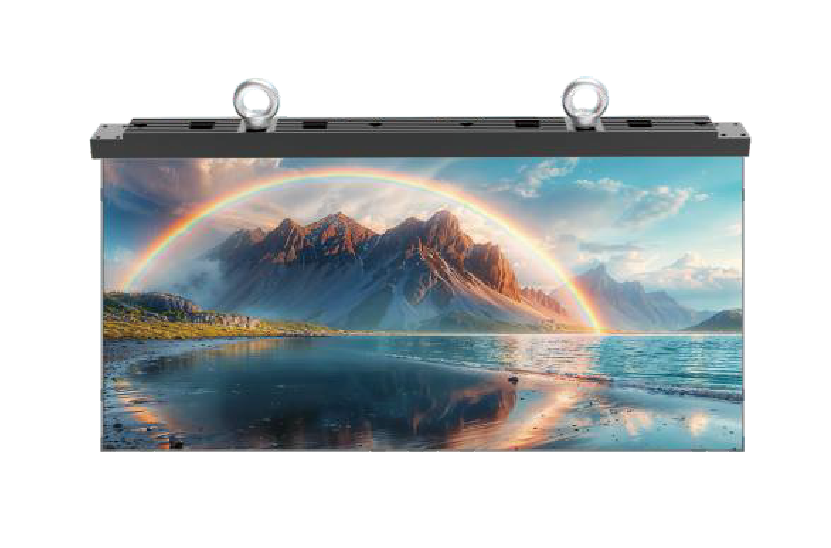

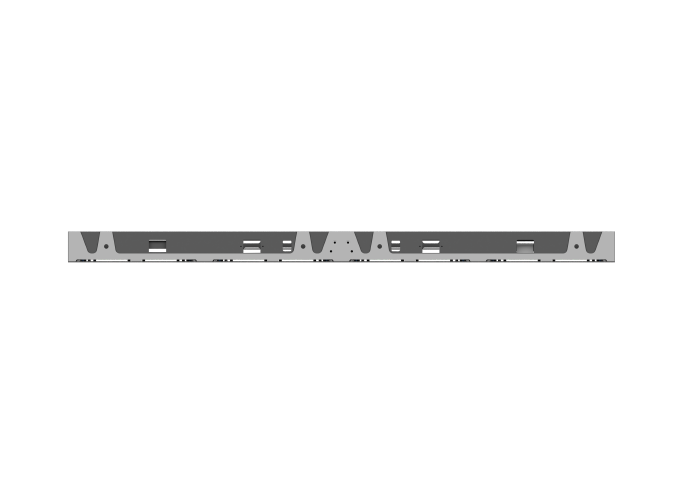

Product is designed with a hanging beam for hoisting display.
| Model | A2A12 | A2A15 | A2A19 | A2A26 | A2A19 | A2A26 | A2A29 | A2A39 |
| Pixel Configuration | COB | COB | COB | COB | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.95 | 2.6 | 1.953 | 2.6 | 2.97 | 3.9 |
| Cabinet Size(mm)（WxH） | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 |
| Cabinet Resolution（WxH） | 800x200 | 640x160 | 512x128 | 384x96 | 512x218 | 384x96 | 336x84 | 256x64 |
| Cabinet Weight(kg/cabinet) | 6.55 | 6.55 | 6.55 | 6.55 | 6.55 | 6.55 | 6.55 | 6.55 |
| Refresh Rate(Hz) | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Model | A2A12 | A2A15 | A2A19 | A2A26 | A2A19 | A2A26 | A2A29 | A2A39 |
| Pixel Configuration | COB | COB | COB | COB | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.95 | 2.6 | 1.953 | 2.6 | 2.97 | 3.9 |
| Cabinet Size(mm)（WxH） | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 | 1,000x250 |
| Cabinet Resolution（WxH） | 800x200 | 640x160 | 512x128 | 384x96 | 512x218 | 384x96 | 336x84 | 256x64 |
| Cabinet Weight(kg/cabinet) | 6.55 | 6.55 | 6.55 | 6.55 | 6.55 | 6.55 | 6.55 | 6.55 |
| Refresh Rate(Hz) | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
