Transformer Series

ProductsTransformer Series

Transformer Series

The transformer series LED product is an all-in-one LED display that can be used immediately after being powered on.

Pixel pitch:

0.75mm/0.78mm/1.25mm/1.5mm/1.56mm

Brightness:

1,000nits

Excellent performance

COB/SMD/MIP optional

HD display

Multiple sizes

High protection

Multiple Product Sizes

A variety of product sizes and clarity are available to meet the needs of different scenarios.

Broadcast Level

Image processing technology, advanced color rendition system.

Fully Mobile

Transformer series designed with a compact package, with removable wheels on the bottom can easily move through doors and elevator, easily move to anywhere you need.

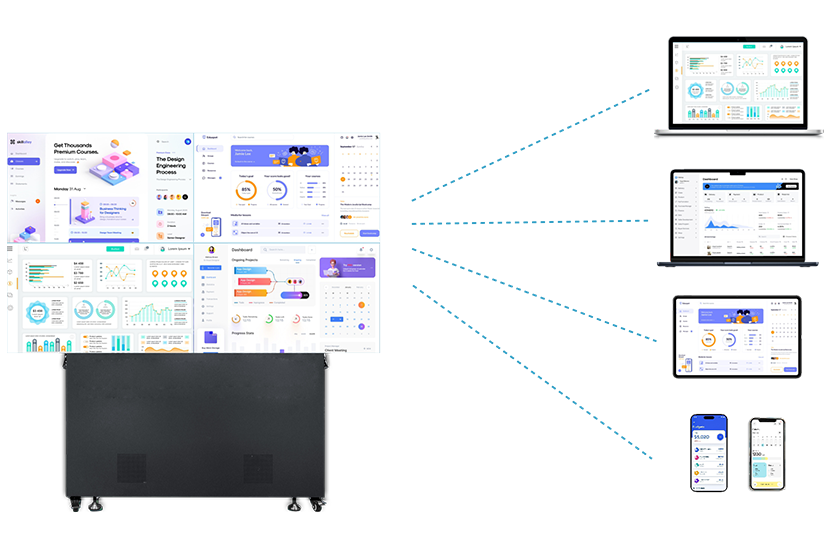

Multiple Screen Projection Modes

Supports screen mirroring of PC, smartphone and pad.

Installation Free

Designed for convenience and ease of use, this product is pre-configured and ready for immediate use straight from the package, just connect the power and expand the screen, instantly embark on your digital journey.

APPLICATION SCENARIOS

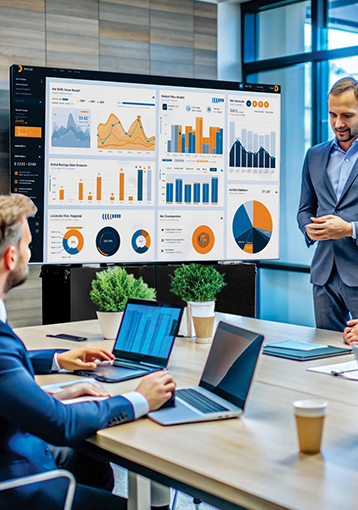

Conference

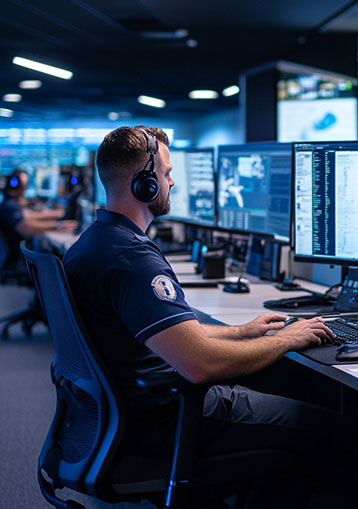

Monitoring center

Command center

Exhibition hall

Specs

Download product brochure

Watch Product Video

Model	T110-2K	T130A-2K	T130B-4K	T136A-2K	T136B-4K
Pixel Configuration	COB(SMD/MIP Optional)	COB(SMD/MIP Optional)	COB(SMD/MIP Optional)	COB(SMD/MIP Optional)	COB(SMD/MIP Optional)
Pixel Pitch(mm)	1.25	1.5	0.75	1.56	0.78
Dispaly Size(mm)（WxH）	2,400x1,350	2,880x1,620	2,880x1,620	3,000x1,687.5	3,000x1,687.5
Package Size(mm)（WxHxD）	1,650x1,760x520	2,170x2,084x520	2,170x2,084x520	2,050x2,150x520	2,050x2,150x520
Resolution（WxH）	1,920x1,080	1,920x1,080	3,840x2,160	1,920x1,080	3,840x2,160
Overall Weight(kg)	470	520	520	550	550
Refresh Rate(Hz)	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680
Grayscale(bit)	14~16	14~16	14~16	14~16	14~16
Brightness(nits)	1,000	1,000	1,000	1,000	1,000
Color Temp(K)	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Control Panel Type	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel
Interface	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1
WIFI Mode	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1
Lifetime(H)	100,000	100,000	100,000	100,000	100,000

Model	T110-2K	T130A-2K	T130B-4K	T136A-2K	T136B-4K
Pixel Configuration	COB(SMD/MIP Optional)	COB(SMD/MIP Optional)	COB(SMD/MIP Optional)	COB(SMD/MIP Optional)	COB(SMD/MIP Optional)
Pixel Pitch(mm)	1.25	1.5	0.75	1.56	0.78
Dispaly Size(mm)（WxH）	2,400x1,350	2,880x1,620	2,880x1,620	3,000x1,687.5	3,000x1,687.5
Package Size(mm)（WxHxD）	1,650x1,760x520	2,170x2,084x520	2,170x2,084x520	2,050x2,150x520	2,050x2,150x520
Resolution（WxH）	1,920x1,080	1,920x1,080	3,840x2,160	1,920x1,080	3,840x2,160
Overall Weight(kg)	470	520	520	550	550
Refresh Rate(Hz)	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680
Grayscale(bit)	14~16	14~16	14~16	14~16	14~16
Brightness(nits)	1,000	1,000	1,000	1,000	1,000
Color Temp(K)	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Control Panel Type	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel
Interface	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1
WIFI Mode	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1
Lifetime(H)	100,000	100,000	100,000	100,000	100,000
